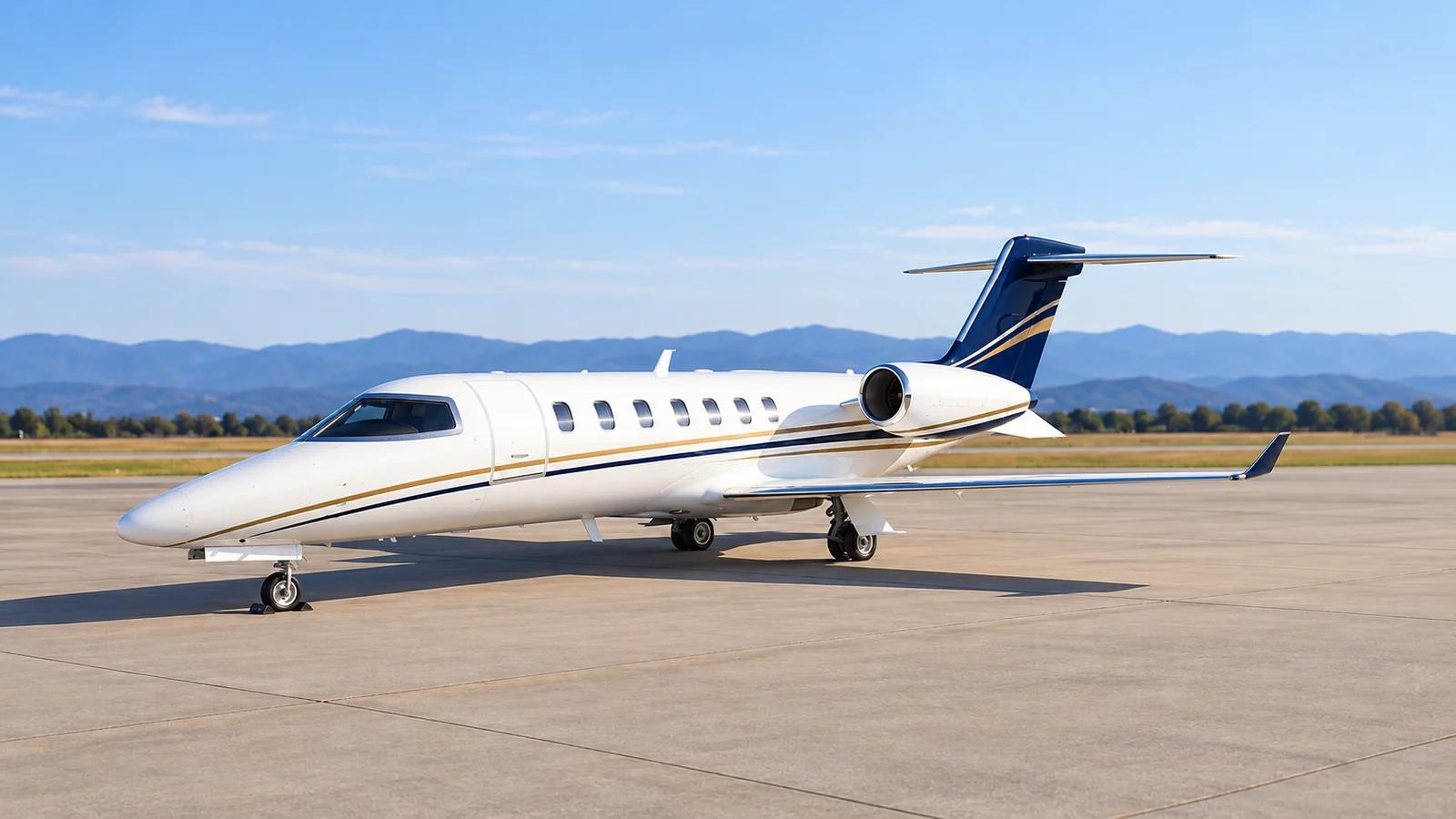

Learjet 40
The Learjet 40 provides the smaller-cabin alternative within the Model 45 generation. It combines a modern winglet-equipped airframe with twin turbofans and an executive cabin sized for smaller groups, bridging Learjet’s earlier light jets and its larger midsize offerings.
Explore Learjet
Aircraft profile
Development and lineage
- Manufacturer
- Learjet
- Family
- Learjet 40
- Aircraft category
- Business Jet
- Propulsion
- Jet
Aircraft data
Key specifications
- PAX
- 6
- Crew
- 2
- Range
- 1,707 nm
- Max operating speed
- 330 KIAS
- Max ceiling
- 51,000 ft
- Engines
- 2
- Engine model
- Honeywell TFE731-20AR
- Thrust per engine
- 3,650 lbf
- MTOW
- 20,350 lbs
- Cabin height
- 57 in
- Cabin width
- 61 in
- Cabin length
- 211 in
- Cabin volume
- 369 cu ft
- Baggage volume
- 65 cu ft
- Overall length
- 55.6 ft
- Wingspan
- 47.7 ft
Overview
Program history
The Model 40 was developed from the Learjet 45 platform to address a different capacity and acquisition-cost point in the light-jet market. It remained part of the same certified Model 45 family rather than a wholly separate type. The later 40XR improved the performance offering, and the Learjet 70 subsequently renewed this smaller member of the range.
