Learjet

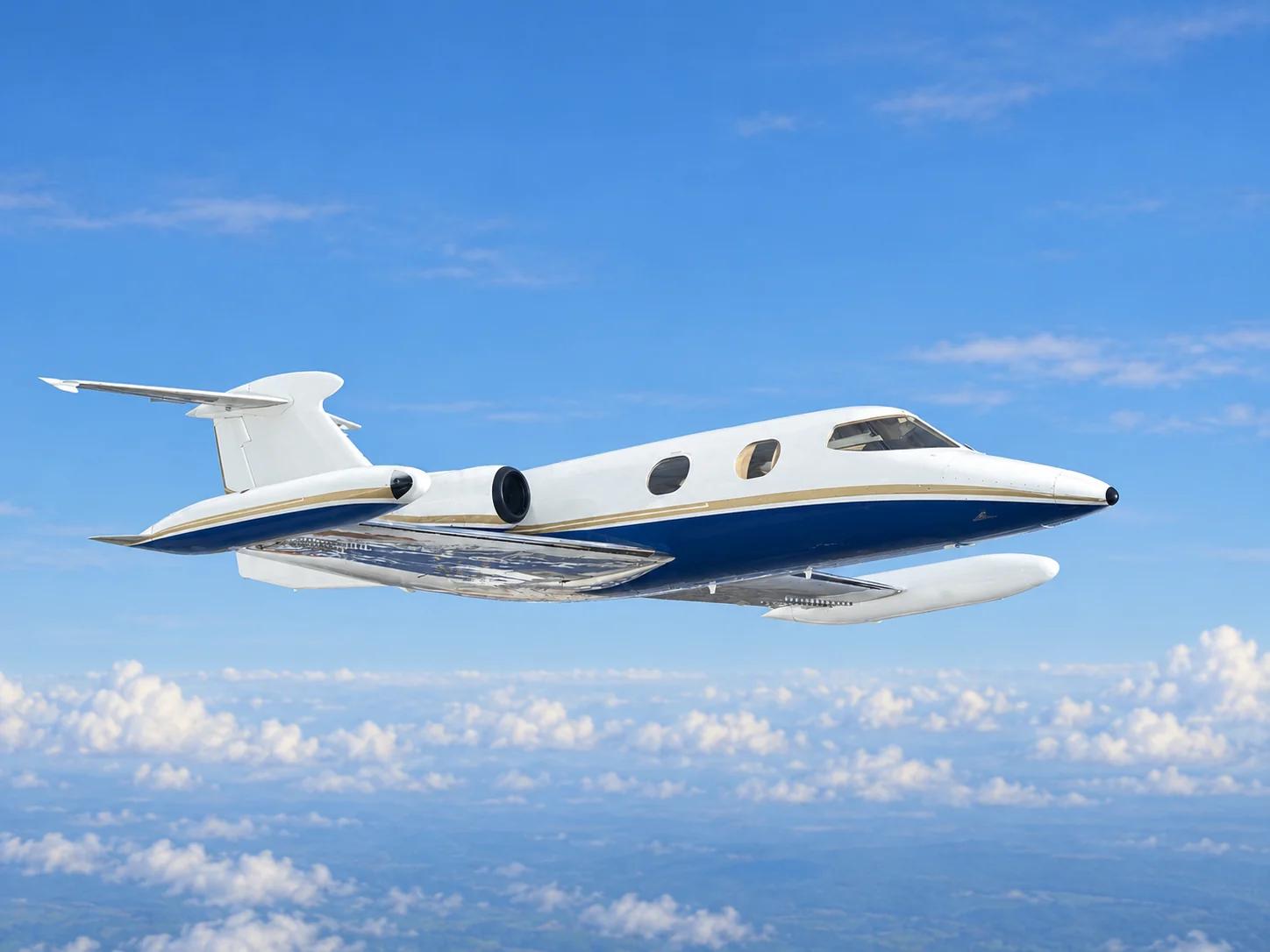

Learjet 23
The Learjet 23 brought fighter-inspired proportions and high cruising speed to the early business-jet market. Its compact cabin, pointed nose and tip tanks became the visual template for the first Learjet generation, aimed at executives seeking direct travel in a small dedicated jet.
Explore Learjet
Aircraft profile
Development and lineage
- Manufacturer
- Learjet
- Family
- Learjet 23
- Aircraft category
- Business Jet
- Propulsion
- Jet
Aircraft data
Key specifications
- PAX
- 6
- Crew
- 2
- Range
- 1,590 nm
- Max operating speed
- 358 KIAS
- Max ceiling
- 45,000 ft
- Engines
- 2
- Engine model
- General Electric CJ610-1
- Thrust per engine
- 2,850 lbf
- MTOW
- 12,500 lbs
- Cabin height
- 52 in
- Cabin width
- 59 in
- Cabin length
- 108 in
- Cabin volume
- 192 cu ft
- Baggage volume
- 40 cu ft
- Overall length
- 43.2 ft
- Wingspan
- 35.6 ft
Overview
Program history
Bill Lear began the project around the aerodynamic ideas of the Swiss P-16 fighter before moving production to Wichita. The resulting Learjet 23 first flew in October 1963 and helped establish a market for small, fast corporate jets. Subsequent Learjet 24 and 25 aircraft developed the formula with revised certification, capacity and operating characteristics.
