Cessna

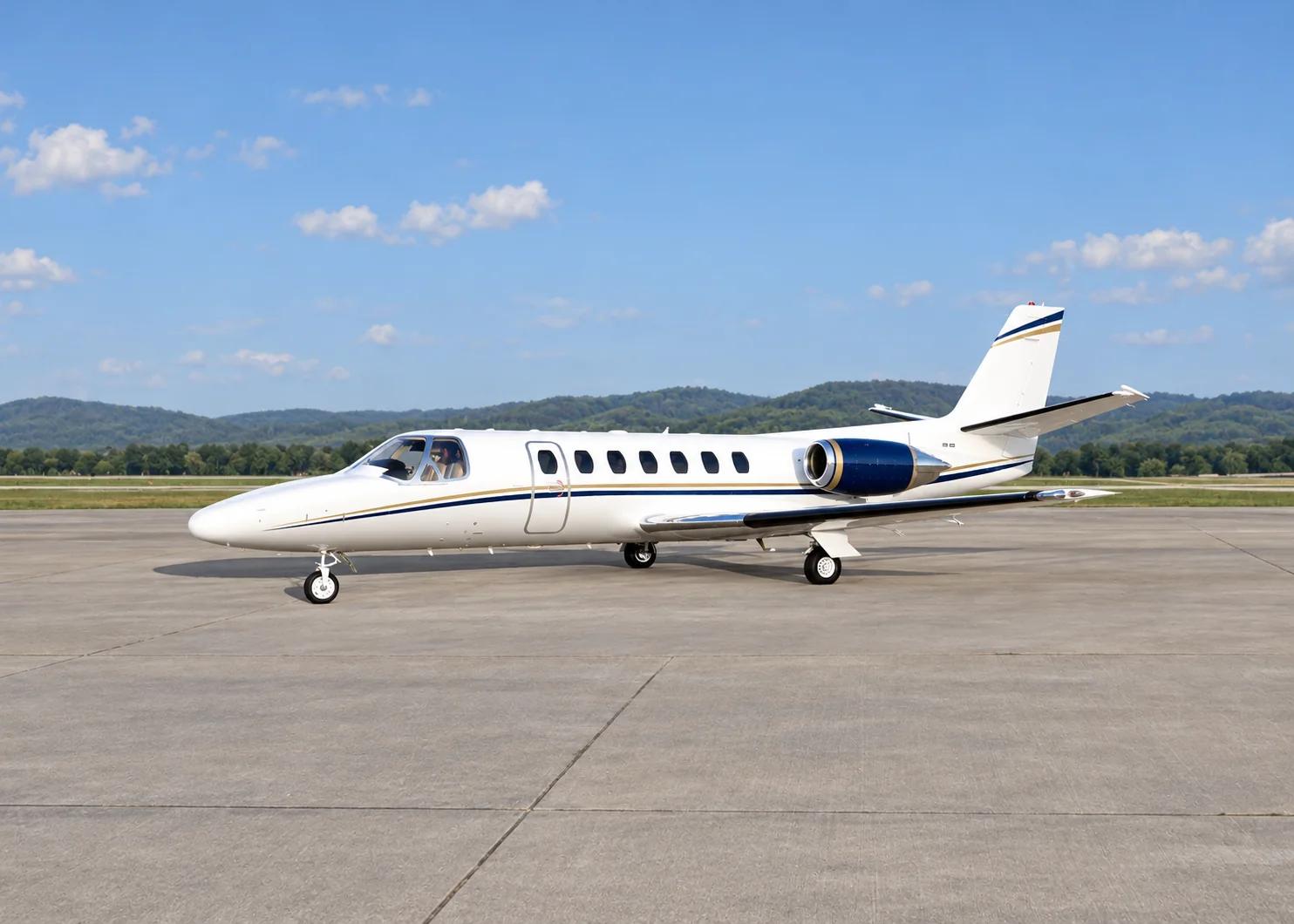

Citation V / 560
The Citation V / 560 is the stretched Model 560 Citation. It was developed for operators needing additional cabin room while retaining the straight-wing Citation approach, with the cabin, propulsion and wing configuration reflecting that particular place in the Citation range.
Explore Cessna
Aircraft profile
Development and lineage
- Manufacturer
- Cessna
- Family
- Citation V
- Aircraft category
- Business Jet
- Propulsion
- Jet
Aliases and related designations
560
Aircraft data
Key specifications
- PAX
- 7
- Crew
- 2
- Range
- 1,727 nm
- Max operating speed
- 276 KIAS
- Max ceiling
- 45,000 ft
- Engines
- 2
- Engine model
- Pratt & Whitney Canada JT15D-5A
- Thrust per engine
- 2,900 lbf
- MTOW
- 15,900 lbs
- Cabin height
- 56 in
- Cabin width
- 57 in
- Cabin length
- 207 in
- Cabin volume
- 292 cu ft
- Baggage volume
- 70 cu ft
- Overall length
- 48.9 ft
- Wingspan
- 52.2 ft
Overview
Program history
Cessna developed the Citation V from its earlier light-jet range, expanding cabin capacity and performance. It began the Model 560 branch that subsequently produced the Ultra and Encore. That lineage is separate from the larger-cabin Model 560XL Excel despite the related model-number terminology.
