Cessna

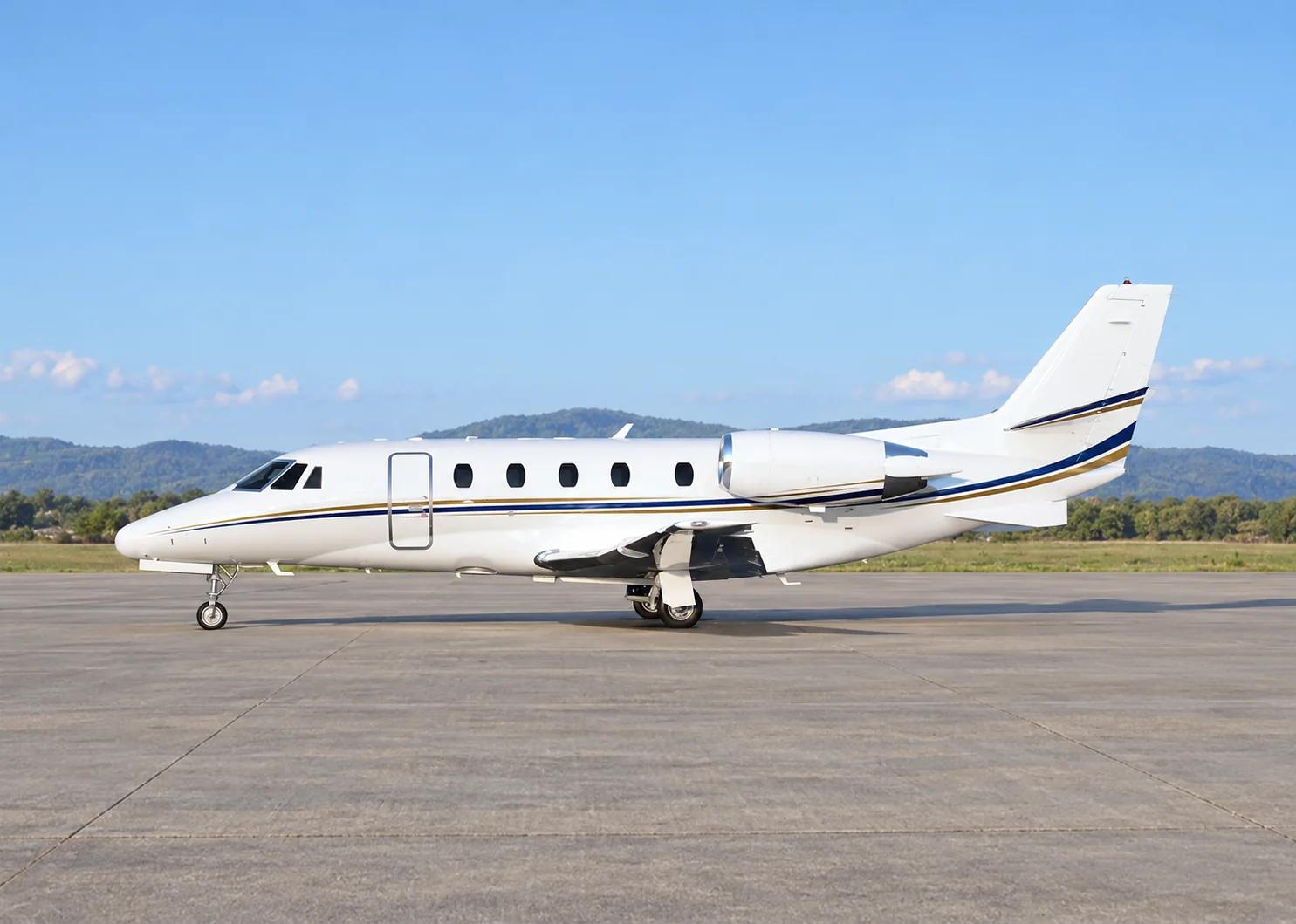

Citation Excel / 560XL
The Citation Excel / 560XL is the original wide-cabin Model 560XL Citation. It was developed for customers wanting more cabin height without moving to a much larger business jet, with the cabin, propulsion and wing configuration reflecting that particular place in the Citation range.
Explore Cessna
Aircraft profile
Development and lineage
- Manufacturer
- Cessna
- Family
- Citation Excel
- Aircraft category
- Business Jet
- Propulsion
- Jet
Aliases and related designations
560XL
Aircraft data
Key specifications
- PAX
- 7
- Crew
- 2
- Range
- 1,839 nm
- Max operating speed
- 305 KIAS
- Max ceiling
- 45,000 ft
- Engines
- 2
- Engine model
- Pratt & Whitney Canada PW545A
- Thrust per engine
- 3,804 lbf
- MTOW
- 20,000 lbs
- Cabin height
- 67 in
- Cabin width
- 65 in
- Cabin length
- 221 in
- Cabin volume
- 422 cu ft
- Baggage volume
- 90 cu ft
- Overall length
- 52.6 ft
- Wingspan
- 56.4 ft
Overview
Program history
The Excel combined a larger cabin cross-section with a straight-wing operating concept suited to regional business flying. It began the 560XL line and was followed by the XLS and XLS+. This lineage is distinct from the narrower Model 560 Citation V, Ultra and Encore family.
